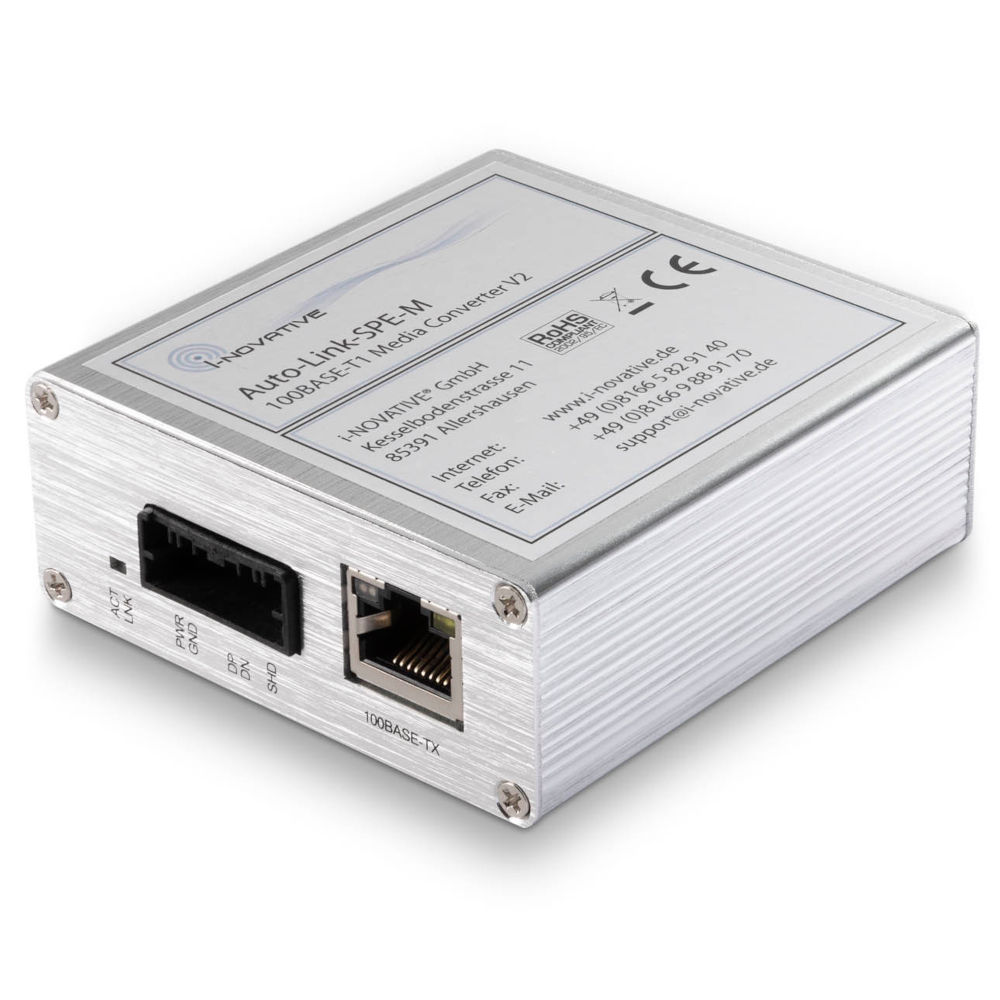

100BASE-T1 Media Converter


The cost efficient 100BASE-T1 Media Converter easily connects 100BASE-T1 and 100BASE-TX networks. A USB interface allows to view and to change PHY settings, to use diagnostic functions (Signal Quality & Cable Diag), as well as firmware update. Power can be supplied via USB (5V) or via the main connector (5V – 28V). The dual power supply seamlessly switches between both inputs. Using the integrated controller, automatic Master/Slave detection is supported.

Technical data::

  • 100BASE-T1 Port (Molex Mini50)
  • 100BASE-TX Port (RJ45)

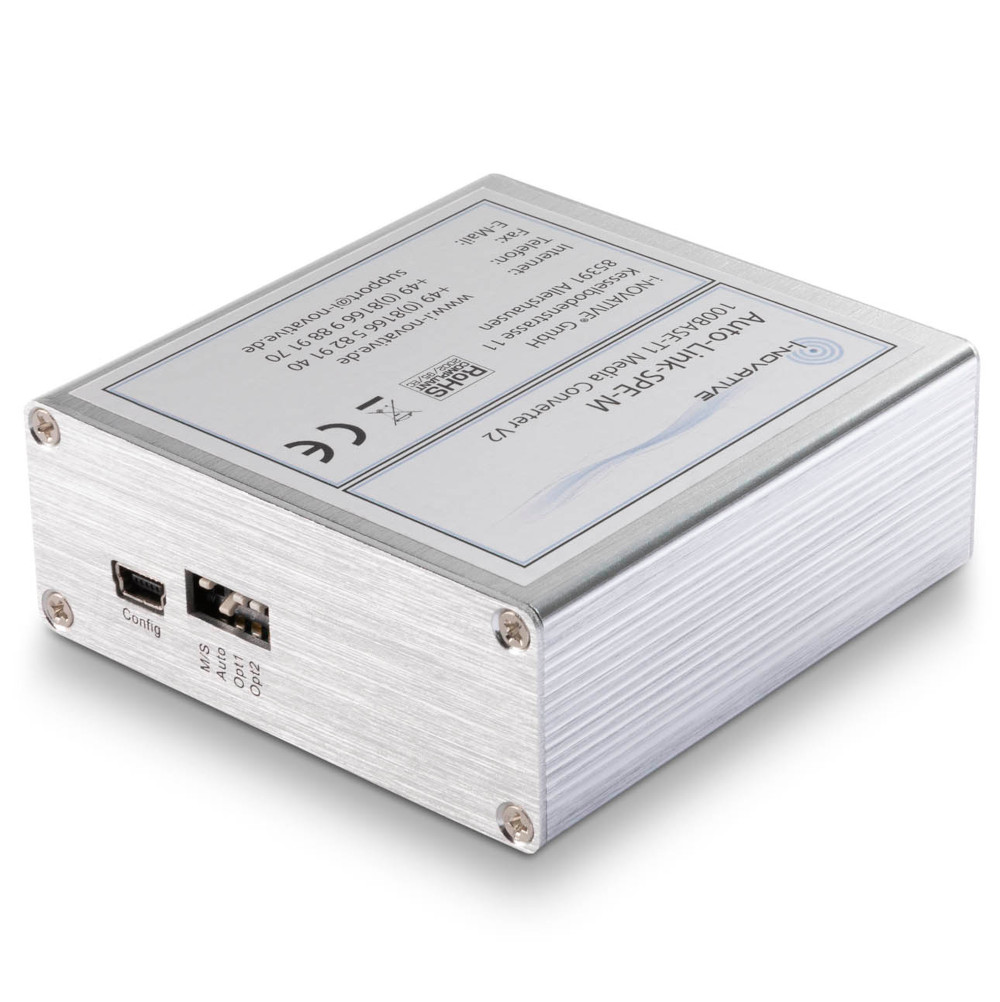

  • Mini-USB Port (Firmware Update & Configuration)
  • Link/Activity LEDs for both network ports
  • Master/Slave role switch via DIP switch
  • Automatic Master/Slave detection
  • Operating Range: 5V - 28V DC (Main Conn) / 5V (USB)
  • Current Consumption: < 50mA @ 12V
  • Dimensions: 70 x 75 x 35 mm
  • Robust aluminium housing
  • Suitable for in-vehicle use

Scope of supply:

  • 1x 100BASE-T1 Media Converter
  • 1x 8pol Mini50 Steckergehäuse
  • 5x CTX50 Terminals (3x AWG24, 2x AWG22)
