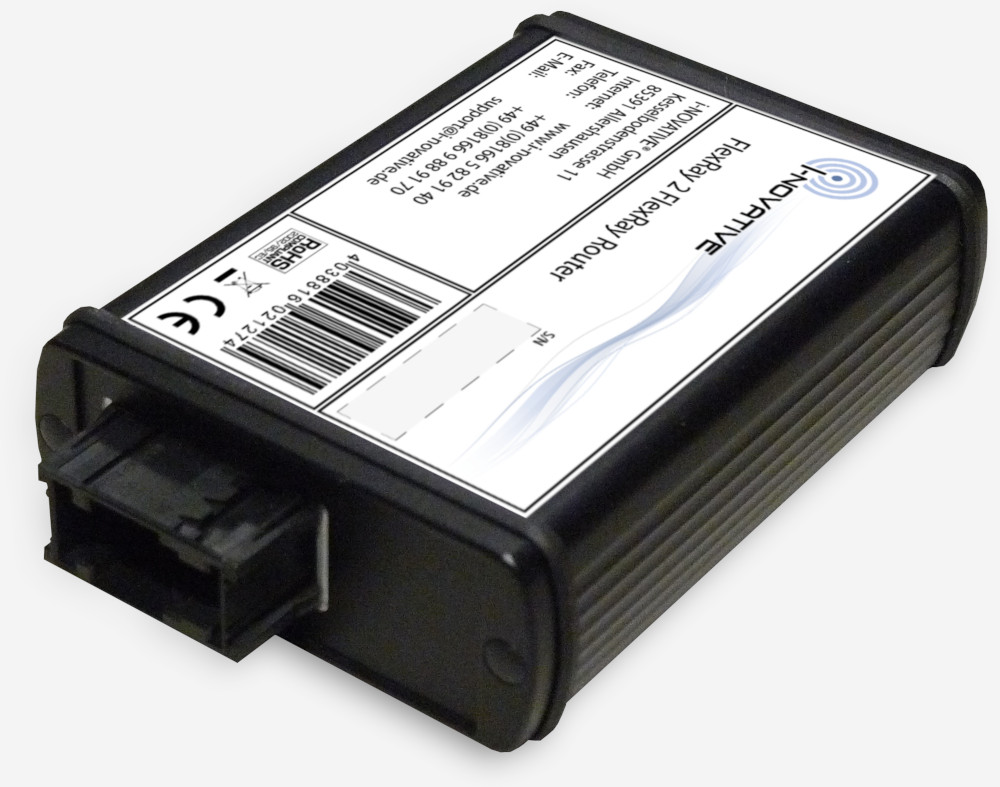

FlexRay2FlexRay Router

The FlexRay2FlexRay Router is a multipurpose device for routing and gateway applications. Equipped with 2 FlexRay nodes and up to 4 CAN interfaces, gateway functions as well as filtering- and blocking-functions can be implemented.

  • 4x High-Speed CAN (up to 1MBit)
  • 2x FlexRay (with vehicle decoupling) single channel
  • 1 Port USB-B (FW update)
  • Operating voltage: 5 to 26 Volt DC
  • Dimensions: 120 x 80 x 35 mm
  • Robust, EMI optimized aluminium body
  • Automotive grade
  • Life-Cycle management functions
  • Simple Firmware update via GUI
  • Tyco automotive Lock-Connector
